Vial storage & Transport
Vial Shields (tungsten)
Nuclear Shields designs and manufactures tungsten vial shields for use in nuclear medicine, radiopharmacy and molecular radiotherapy. Standard tungsten thickness of 4 or 6mm to provide a high level of attenuation for optimal user protection. The vial shields are fully customization with options for window, colour, inserts and caps. Nuclear Shields can also provide custom designs to meet any customer’s needs.
4mm or 6mm tungsten thickness
5 colours to choose from: red, blue, silver, gold, and green
Internal dimensions: 27 x 61mm (diameter x height)
Sliding or magnetic cap
Customization of insert to suit specific vials
Lead glass vial Shield
Tungsten vial shields with a lead glass viewing window completely covering the outside for maximum visibility. This vial shield has 4 mm tungsten shielding, with a 12.5 mm lead glass viewing window. The anodized aluminum top- and bottom covers are available in five colors (see reference image below). The cap is secured with strong magnets, which can be twisted to easily remove the cap to expose the elution hole.
Maximum visibility
Grips to easily disassemble
Inserts available upon request
Internal dimensions: 30 x 59.30mm (diameter x height)
Tungsten container
Store your radioactive sources in these tungsten containers with upto 20mm tungsten shielding. The top lid has a tapered hole to accomodate dose drawing while minimizing radiation exposure. The hole can be shielded with a tungsten plug. It is optional to receive this plug threaded. If that is not necessary, we recommend not to thread the plug to keep the hole diameter as small as possible.
Internal dimensions: 35 x 80mm (diameter x height)
Customisable shielding thickness: 6 - 20mm
Lead Vial Pig
Nuclear Shields designed this lead vial pig with 25mm lead making it suitable to safely store and transport radioactive materials. The exterior is coated with an resistant epoxy coating.
25mm lead
Epoxy coating
Customizable lead thickness
Inside dimensions: 70 x 44 mm
Vial Storage Pot
Variable thickness of lead can be installed in both the base and lid. The lid can be attached by a bayonet style 'topple proof' method. Suited to a 20ml vial.
Finish : Brushed st steel
Maximum Lead Thickness (mm) : 23 mm
Maximum Mass (kg) : 6.4 kg
Dimensions (mm) : 100 x 122 mm
Internal Dimensions (mm) : 28.8 x 70 mm
30ml vial version available
Basic Vial Shield
Designed with simplicity in mind. No view window which helps to maintain affordability while still providing effective protection.
Material : Tungsten
Maximum shielding thickness (mm) : 3 mm
Mass (kg) : 0.47 kg
Internal Dimensions (mm) : 27 x 61 mm
Swing top lid available

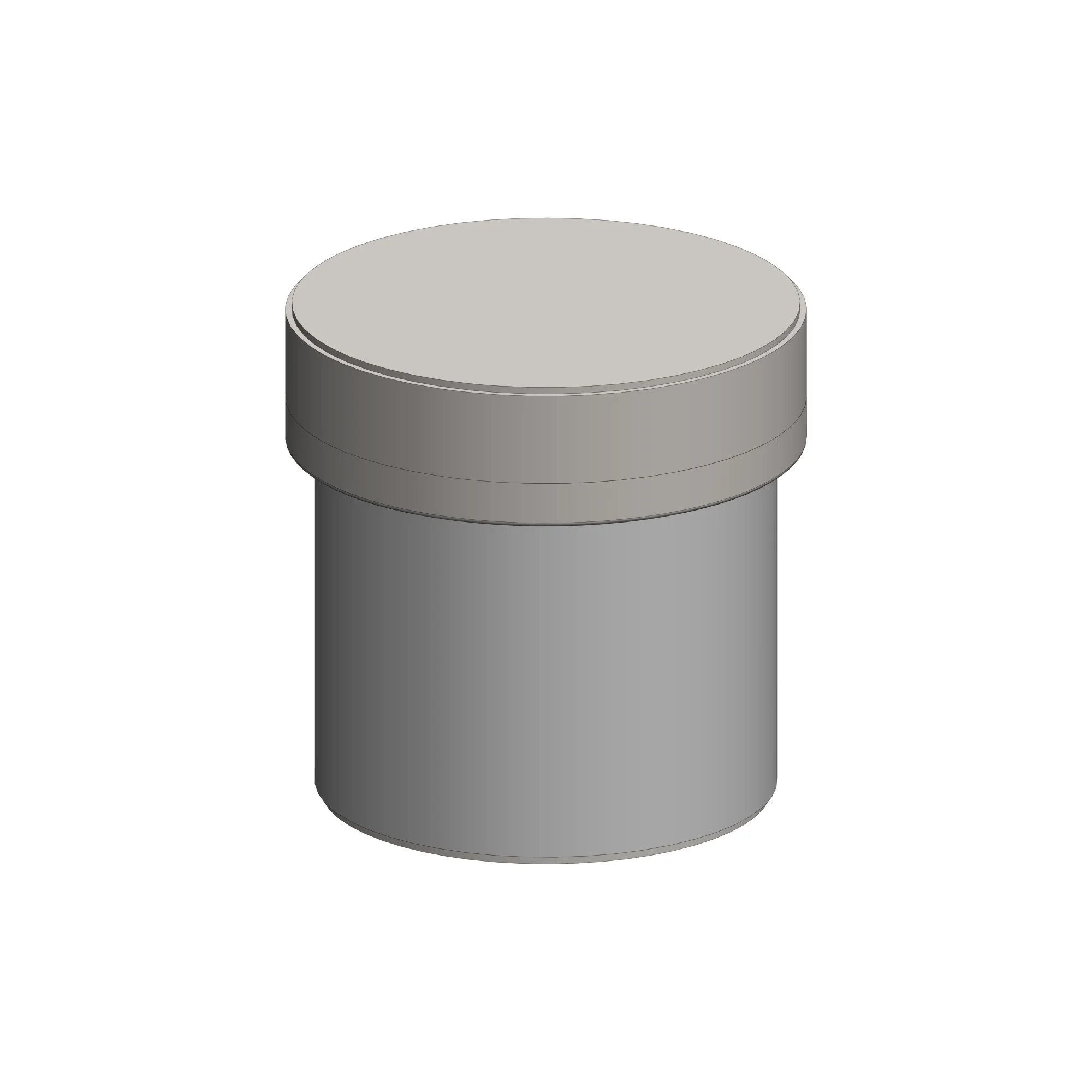

VIAL CADDY
With 25mm lead shielding the vial transporter is well suited for higher energy isotopes such as FDG, Zr-89 or I-131. VTR301 features a choice of solid lid - allowing for fully shielded - and dispensing lid with a small aperature within the lid allowing for needle insertion and lower dose dispensing.
Finish : Brushed Stainless Steel
Materials : Stainless Steel
Syringe TRANSPORT PIG
SYC101 allows for a single syringe, up to 5ml in capacity, to be housed. The pig can be used stand alone in a lab or clinic setting or through combining this with SYC001 a certificated transport package can be formed.
Finish : Brushed Stainless Steel
Materials : Stainless Steel
Maximum Lead Thickness (mm) : <12.5 mm
Maximum Mass (kg) : 3.5
Dimensions (mm) : 55 dia x 231 high mm
Internal Dimensions (mm) : 16 dia x 183 high mm
SYCAD - TYPE-a
The foam inner is designed for use with the RadiTech Ltd syringe carrier, large cavity vial shield and vial caddy. As a certificated transport package SYCAD is required to be inspected periodically. The period for this is set at 18 months. Up to a maximum package mass of 25kg.
Finish : Unpainted
Materials : Aluminium, Foam
Maximum Mass (kg) : 20 kg
Dimensions (mm) : 366 x 266 x 340 mm

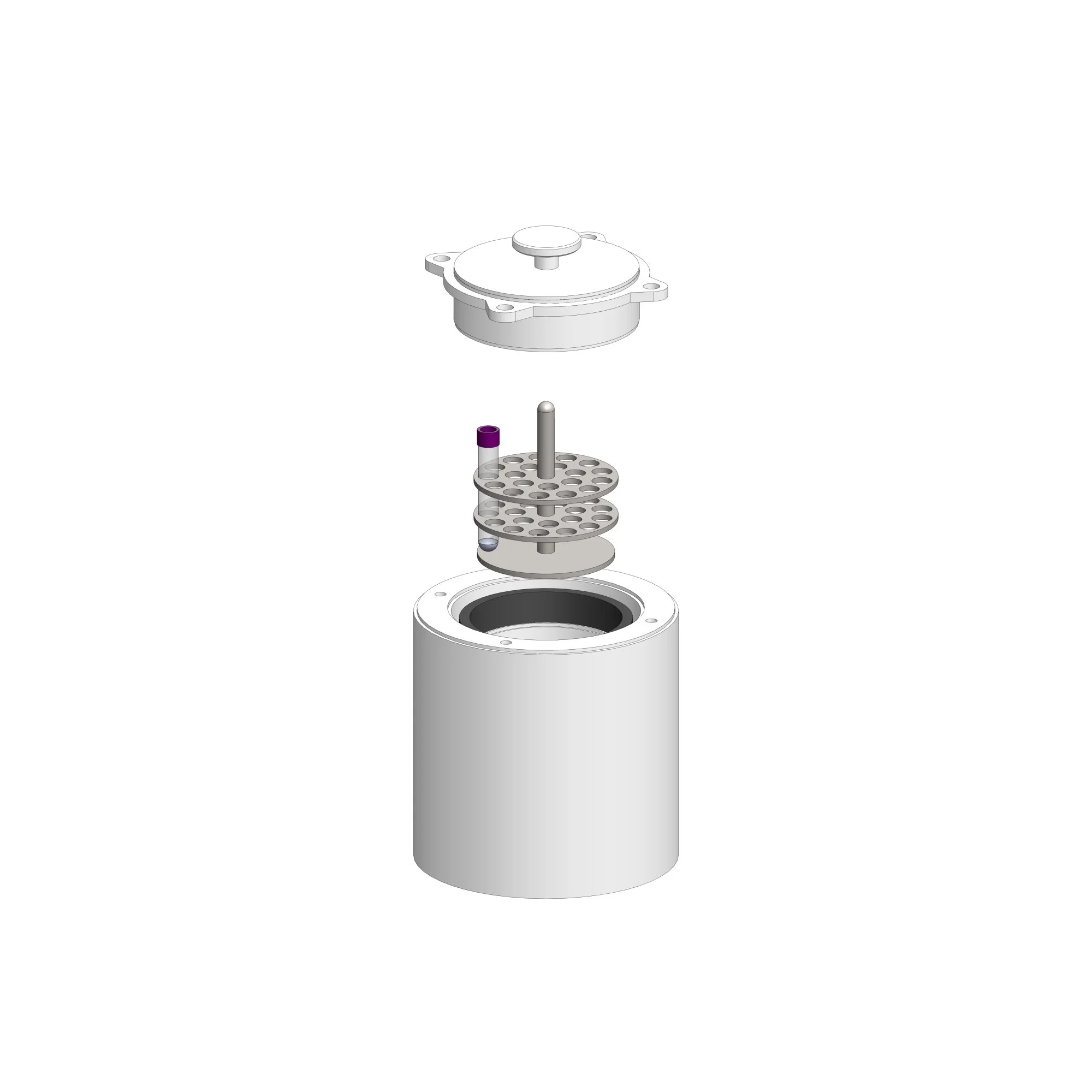

Large Cavity Vial shield
With 30mm lead shielding the LCA001 transporter is well suited for higher energy isotopes such as FDG, Zr-89 or I-131.
Finish : Powder coated
Materials : Stainless Steel
Maximum Lead Thickness (mm) : <30 mm
Maximum Mass (kg) : <24 kg

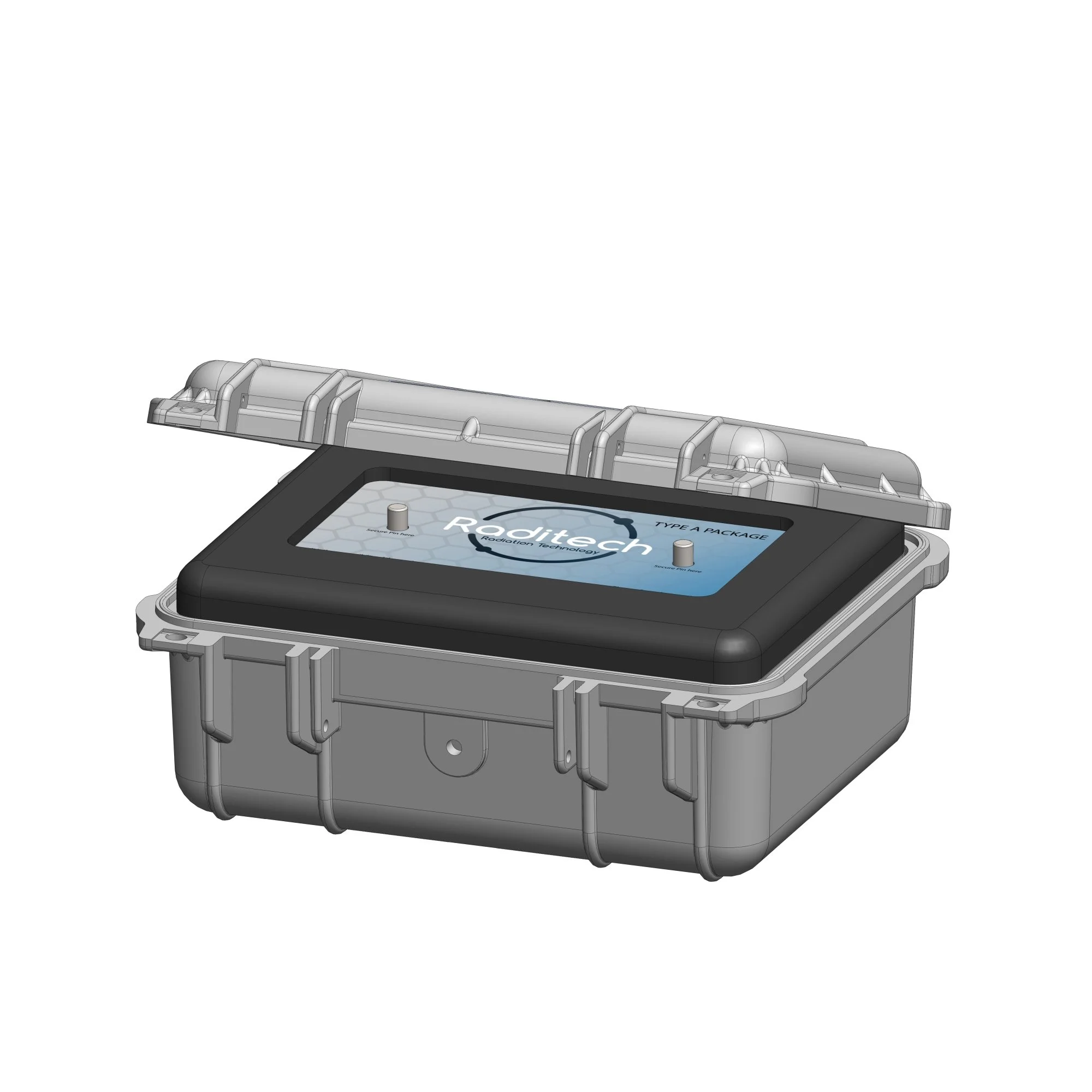

Vi-CAD Case
The Vi-Cad is a lightweight, ergonomic transporter designed for the Nuclear Medicine industry to safely carry up to eight radioactive isotopes in Raditech’s shielded containers. Suitable for all transport modes, including air travel, it combines robust construction with easy handling and a clean, practical design. Internal label pouches support two-sided labels for efficient identification and reduced handling time. Weighing only 7 kg when fully loaded, the Vi-Cad ensures convenience without compromising safety. In compliance with IRR17, it requires annual inspection and maintenance, which qualified technicians can perform either on-site or at Raditech’s facility to maintain safety and performance standards.

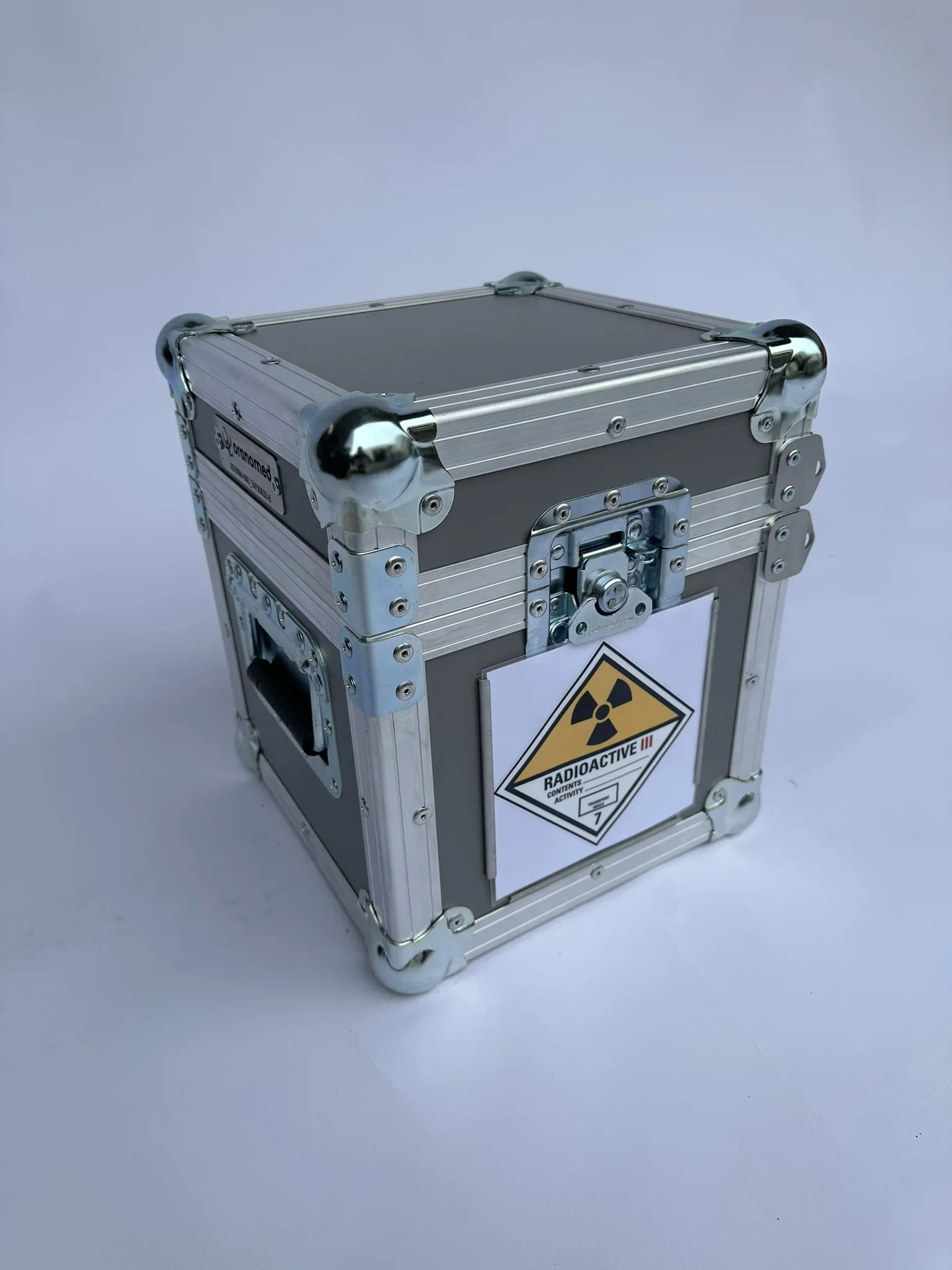

Type-A case (Nuclear Shields)
Type A Packaging consists of certified containers designed for the safe transport and storage of radioactive materials in compliance with international regulations, including IAEA and DOT standards. These containers ensure the secure containment of vials, syringes, or capsules during transport by road, air, sea, or rail. Available in reusable or disposable options, Type A packages typically feature absorbent foam inserts, sealed lids with gaskets, and ergonomic handles for safety and convenience. Fully compliant with UN 2915 and related standards, they provide reliable protection and regulatory assurance for the handling and transportation of radioactive materials.
