Furniture
Dose Dispensing station (Laminar flow)
The PDA042 incorporates a shielded cabinet designed for safe handling and preparation of radiopharmaceutical doses. It includes integrated shielding, waste management, and laminar flow protection to ensure operator safety and product sterility.
Key Features:
Integrated dose calibrator with shield
Sharps bin with shielded port access
Non-porous, seamless worktop with ports for dose calibrator and sharps bin
Work station
With up to 40mm of encased lead the PDA016 workstation allows for the safe use and preperation of doses while taking up a small amount of area. Comprising CF401, DCU001 and LMP001 PDA016 allows for appropiate shielding for manipulating either SPECT or PET doses. The integral cupboard allows for locked, secure storage.
Materials : Steel / St Steel
Maximum Lead Thickness (mm) : 6 / 30 mm
Maximum Mass (kg) : 350 kg
Dimensions (mm) : 600 x 682 x 1273 mm
Internal Dimensions (mm) : 486 x 580 x 680 mm
Mobile PET Shielded Workstation
Engineered for mobility without compromising on radiation protection, this workstation integrates robust shielding and practical features into a compact, mobile unit.
The SW115 is equipped with 50 mm lead shielding in the movable L-block screen and 20 mm lead shielding in the work surface, offering excellent protection against high-energy gamma emissions. It includes a dose calibrator compartment and a waste bin compartment, both shielded and easily accessible.
50 mm lead shielding in movable screen
20 mm lead shielding in work surface
110 mm lead glass viewing window (280 x 180 mm, 5.2 g/cm³)
Integrated compartments for dose calibrator (ø177 x 472 mm) and waste bin (246 x 253 x 396 mm)
Spacious working area: 1110 x 705 mm
External dimensions: 1220 x 802 x 1440 mm

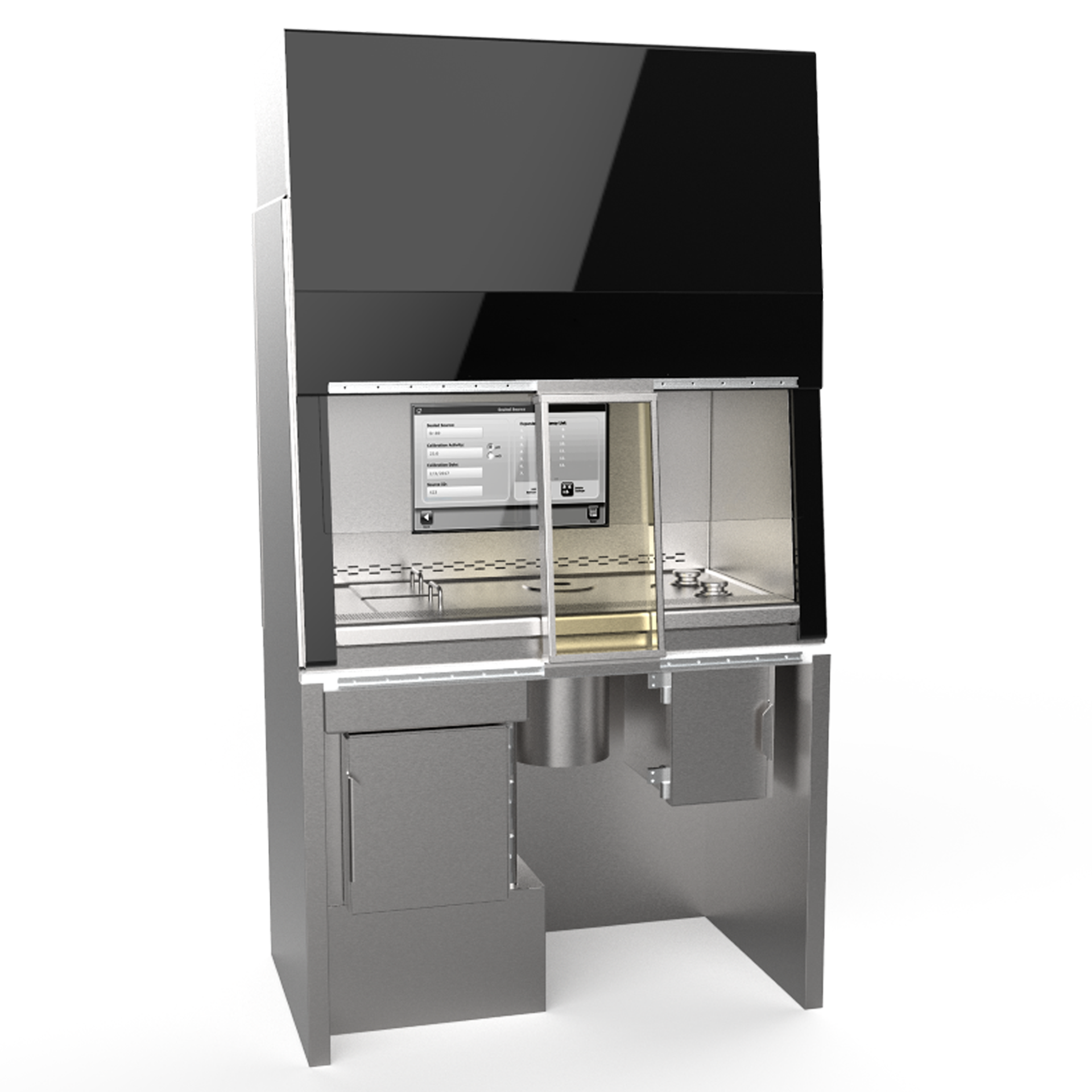

Shielded Biological Safety Cabinet
Biological safety cabinet shielded with lead to safely work with radioactive materials. This cabinet includes multiple useful features, such as an electronic generator lift. For more information, see the description below or download the brochure below.
Sliding lead glass window
Control the airflow inside the cabinet
Designed for standing and sitting work
Electrical generator lift for two generators
ULPA filter removing 99.999% of 0.3μm particles
CABINETS
radioactive sample storage cabinet
Modular shielded radioactive sample storage cabinet with six drawers. The skirting board and drawer fronts are made out of HPL , which is often used in clean rooms for it's easy decontamination and low weight. The frame, tabletop and side boards of the shielded radioactive sample storage cabinet are made out of stainless steel to give a clean look and provide clean-ability. The dimensions of our modular shielded cabinets are exactly the same, which means all our lead lined cabinets can be placed next to each other and on top of each other, enabling you to easily upgrade your hot lab setup whenever there is a budget. This shielded radioisotope storage cabinet has 25 mm (1") lead shielding on all sides and in the front panels of the drawers. These cabinets can easily be connected because of it's modular design.
Modular - Easily upgrade setup
Modern design
Ideal for source storage

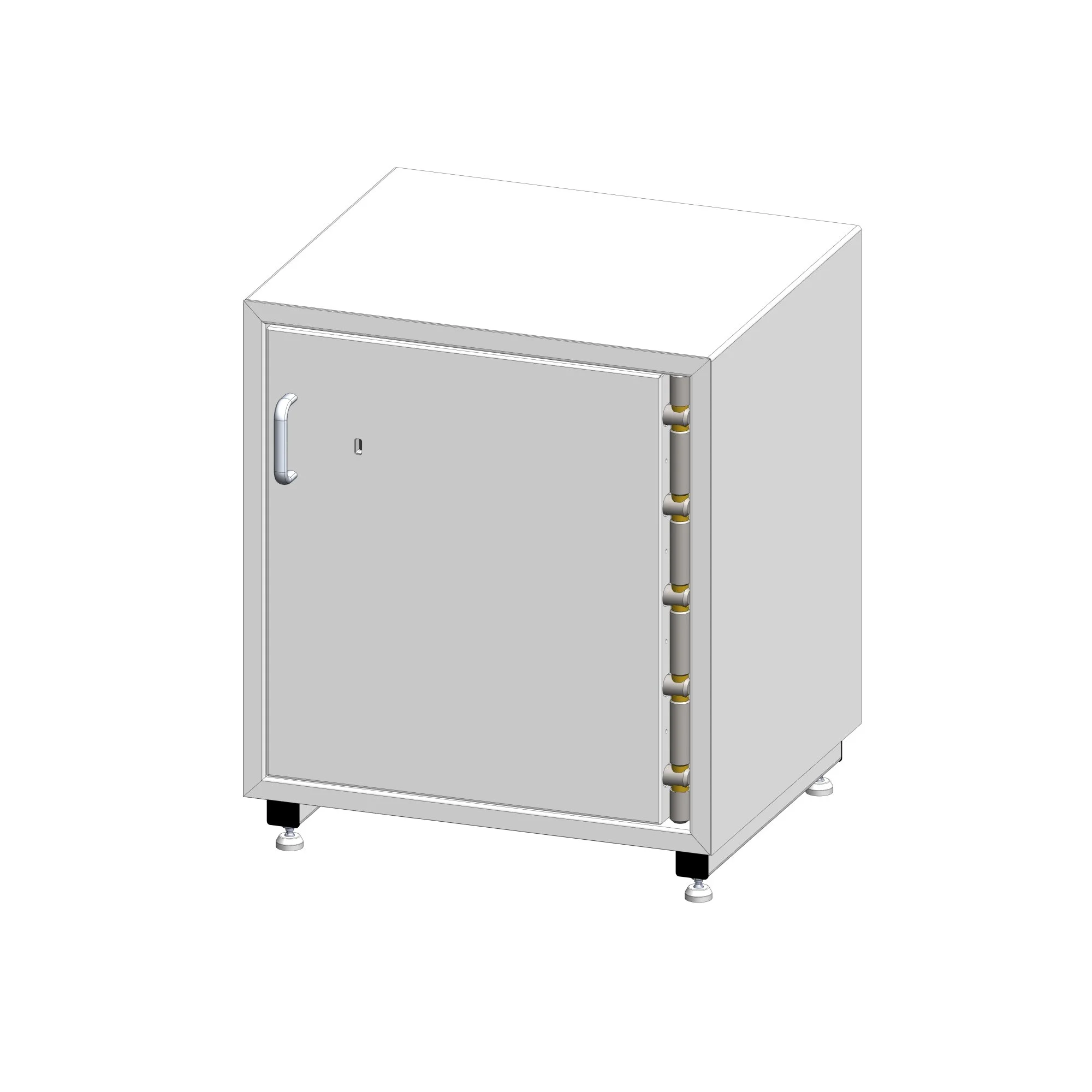

Underbench Safe
Available as a standard size with the details shown below or to a custom size, the underbench safe can be installed with up to 30mm of lead. Featuring heavy duty stainless steel hinges with brass bearings the lead loaded door is able to be opened with ease. A recessed door with high security mortice lock give an increased level of security over the contents. Ideally suited to for storage of sealed sources or high volume or high activity waste.
Finish : Powder coated
Maximum Lead Thickness (mm) : 30 mm
Maximum Mass (kg) : 770 kg
Dimensions (mm) : 773 x 622 x 883 mm
Internal Dimensions (mm) : 509 x 511 x 550 mm
ASSEMBLIES
Lead Shielded Cabinet
Compact and practical storage unit with four retractable shelves, designed to provide safe containment of radioactive materials in medical, laboratory, and nuclear environments. This cabinet offers essential protection against low- to medium-energy gamma radiation.
Each of the four pull-out shelves ensures convenient and organized access to stored items such as vials, syringes, or sealed sources. The cabinet’s body is constructed from high-quality stainless steel and features a durable high-pressure laminate (HPL) front panel, available in a wide range of RAL colors to suit clinical or technical surroundings.
Key features:
6, 12 and 25mm lead shielding for reliable gamma radiation protection
Four retractable shelves with internal dimensions: 341 x 396 x 152mm
External cabinet dimensions: 730 x 550 x 1005mm

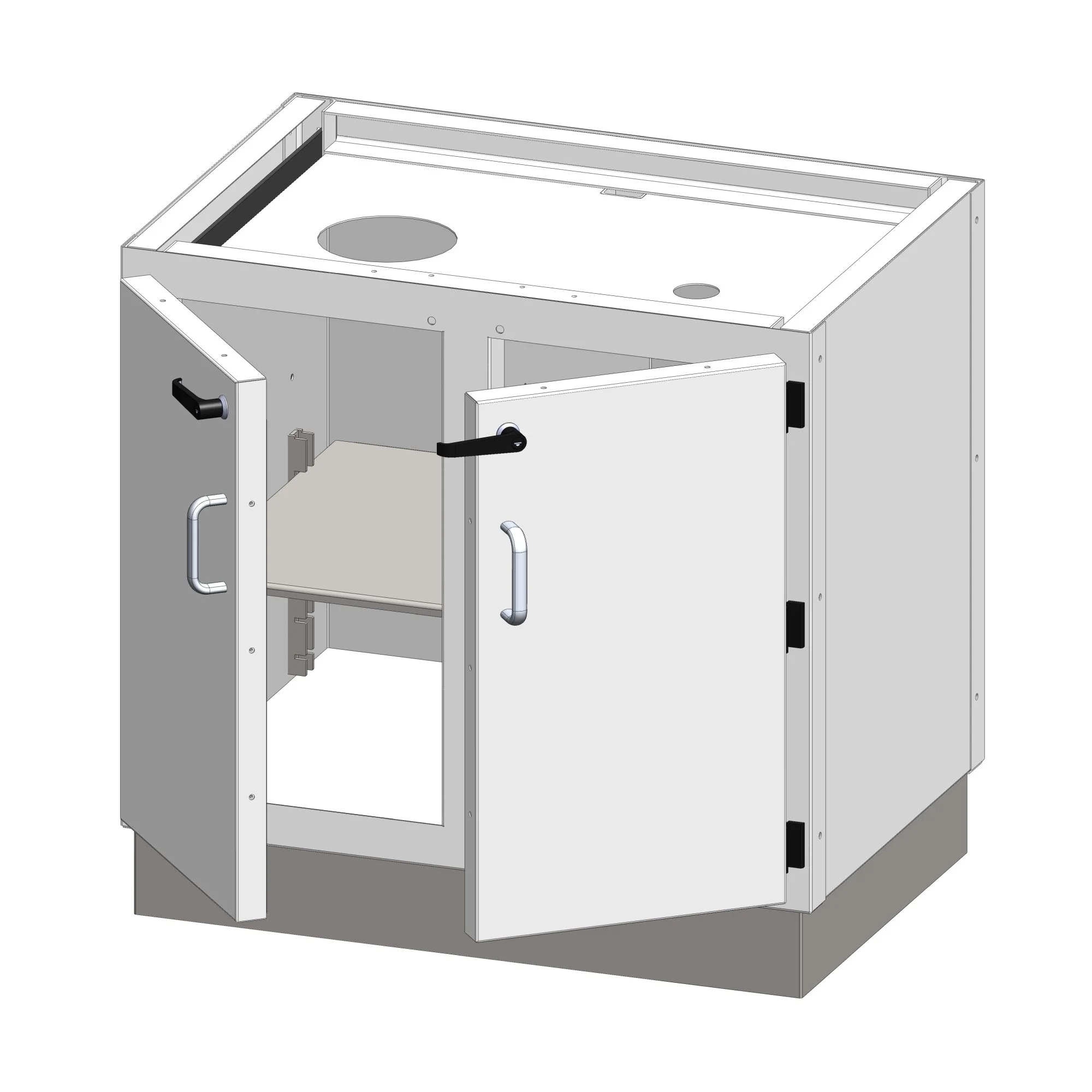

DOSE DISPENSING BENCH
Available as a standard size with the details shown below or to a custom size and with custom worktop, the Dispensing Bench cabinet can be installed with up to 30mm of lead. The bench is split into two sides with individual doors. Each side features adjustable position shelves and a heavy duty mortice lock for securing the contents. Ideally suited to decay storage of excess doses and waste.
Finish : Powder coated
Materials : Steel
Maximum Lead Thickness (mm) : 30mm
Dimensions (mm) : 950 x 681 x 858mm
Internal Dimensions (mm) : 382 x 593 x 675mm (x2)
DECAY CABINET
Available as a standard size with the details shown below or to a custom size, the decay cabinet can be installed with up to 12mm of lead. Featuring stainless steel hinges with brass bearings the heavy door is able to be opened with ease. Adjustable position shelves and a heavy duty mortice lock for securing the contents. Ideally suited to decay storage of excess doses and waste.
Finish : Powder coated
Materials : Steel
Maximum Lead Thickness (mm) : 12 mm
Dimensions (mm) : 770 x 640 x 875 mm
Internal Dimensions (mm) : 662 x 540 x 686 mm
SHIELDED SAFES

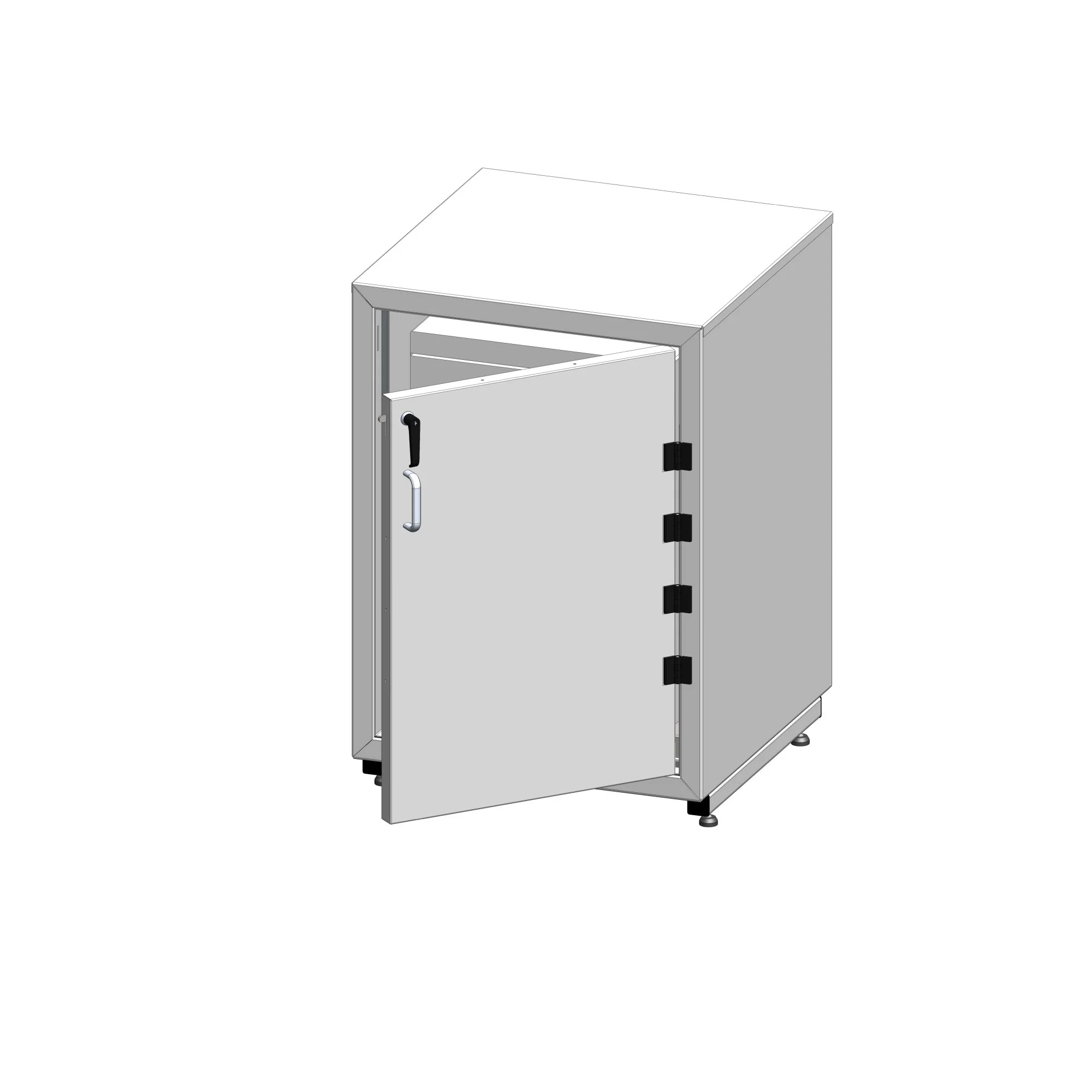

Fridge ENclosure
Featuring a lockable, recessed door the fridge enclosure provides a high level of security for the contents. The enclosure features vent holes in the base of the unit and the top to allow for air circulation, the lead shielding is in place ensuring shielding continuity over the vents.
Finish : Powder coated
Materials : Steel
Maximum Lead Thickness (mm) : 40 mm
Maximum Mass (kg) : 1358 kg
Dimensions (mm) : 808 x 763 x 1130 mm

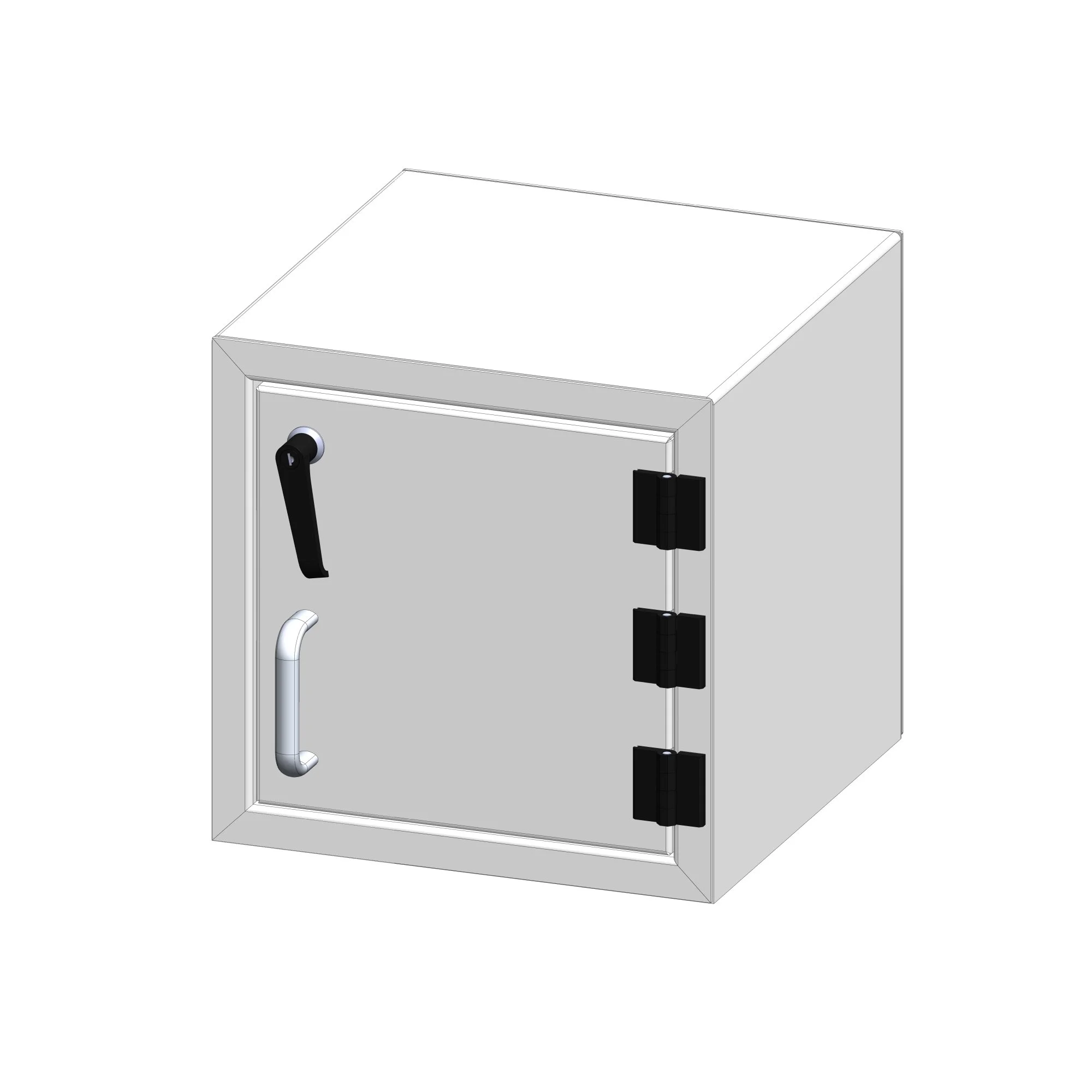

Mini Safe
The rebated door provides a greater level of security over a conventional cabinet. The mini safe allows for lead shielding in 5mm increments with a maximum thickness of 50mm. The mini safe allows for cost effective, secure storage for a low volume of goods, such as a small number of sealed sources.
Finish : Powder coated
Maximum Lead Thickness (mm) : 50 mm
Maximum Mass (kg) : 430 kg
Dimensions (mm) : 430 x 430 x 550 mm
Internal Dimensions (mm) : 306 x 335 x 306 mm
Low Profile Safe
The rebated door provides a greater level of security over a conventional cabinet. The low profile safe allows for lead shielding in 5mm increments with a maximum thickness of 30mm. The low profile safe allows for cost effective, secure storage for a low volume of goods, such as a small number of sealed sources. The shallow nature of the low profile safe allows a small standoff from the wall allowing for improved access around the safe.
Finish : Powder coated
Materials : Steel
Maximum Lead Thickness (mm) : 30 mm
Storage safe
`Designed for the secure containment of radioactive sources, radiopharmaceuticals, and calibration standards in nuclear medicine, research facilities, and isotope production environments
Internal dimensions: 204 × 204 × 204mm
Lead thickness: 32mm
Total weight: 196kg
Lockable for authorised access only
Configurable interior with shelving or dividers
Can be supplied as part of a custom multi-unit source storage setup (e.g., 4×4 or 1×3) – on request
